Air-Blast Freezer

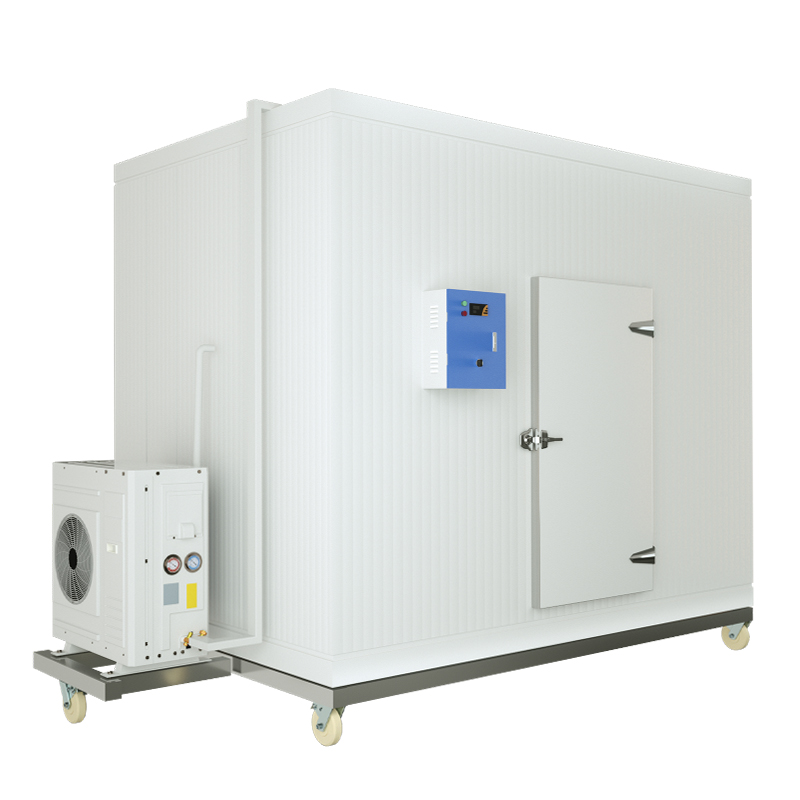

Blast freezer (-35℃ to -30℃), also known as quick-freezing cold room, can freeze meat, seafood and other foods by means of air coolers or special freezing devices. It consists of three parts: refrigeration and electrical controlling system, insulation panels and insulation door.



Features:

  • The insulation panels can be can be disassembled into pieces which saves shipping space greatly.
  • The refrigeration units works intermittently, saving a lot of electricity.
  • Automatic operation control: the temperature can be controlled automatically and it can defrost automatically, very simple to operate and maintain.
  • The cold room is equipped with simple refrigeration system, has very few fault.

Specification

Product Tags

Item Spec.
Dimension Length, width and height all can be customized

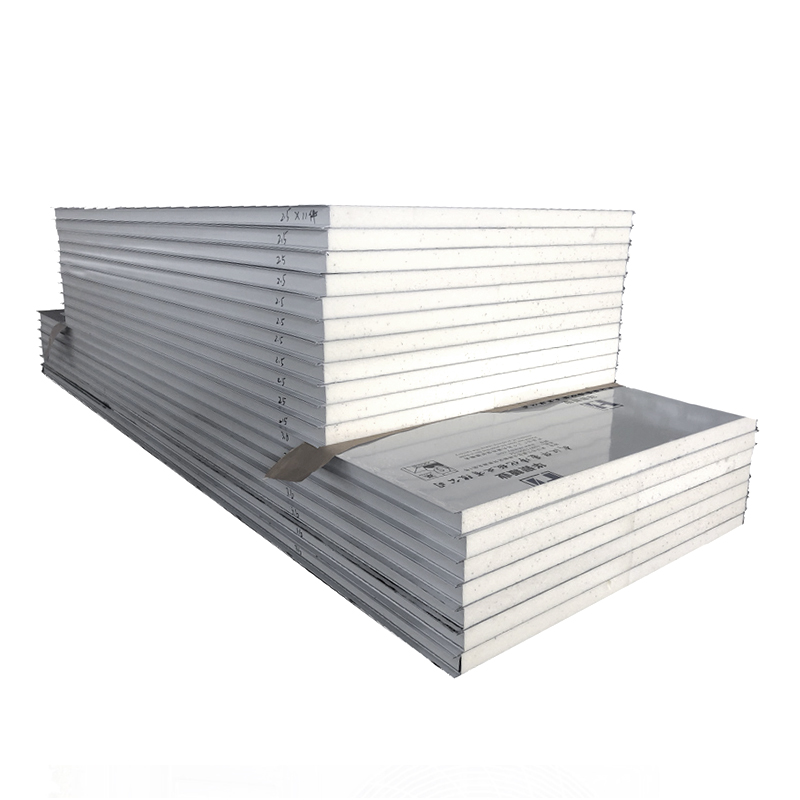

Fireproof Polyurethane insulation panel, 40kg/m3, Fire Prevention B2 Engineering Grade
Thickness of panel Optional: 150mm, 200mm
Steel cover of cold room Stainless steel plates, color steel plates and embossed aluminum plates
Panel Connection Cam lock type, use hexagonal key to assemble and disassemble
Refrigeration Units Bitzer
Refrigeration type R404a or R22
Fittings of cold room All necessary fittings are included, optional
Voltage of cold room 220V/50HZ, 220V/60HZ, 380V/50HZ optional
